Hospital Curtain Track

Cubicle rail for room dividing and privacy in the HealthCare Sector

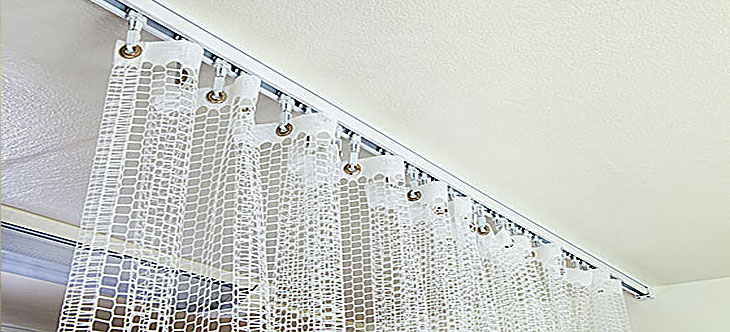

Hospital Curtain Track(G-Rail 4100)

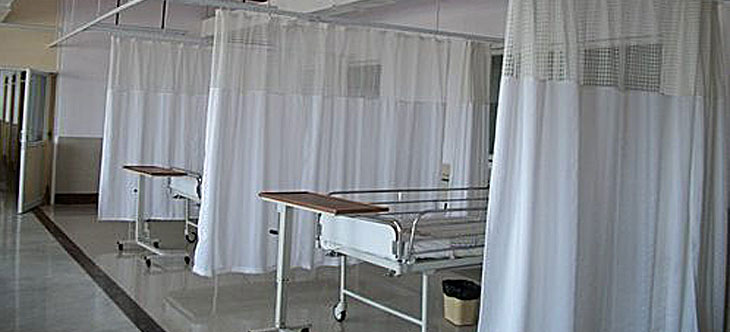

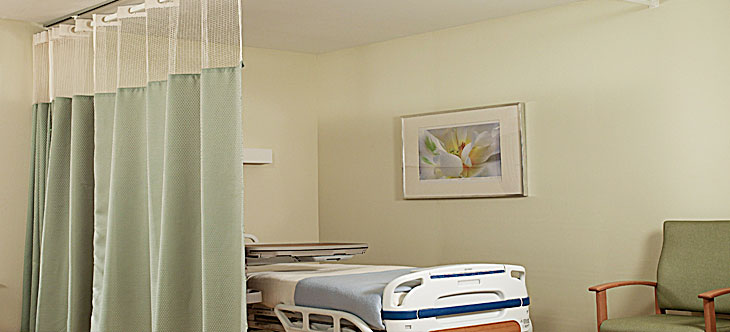

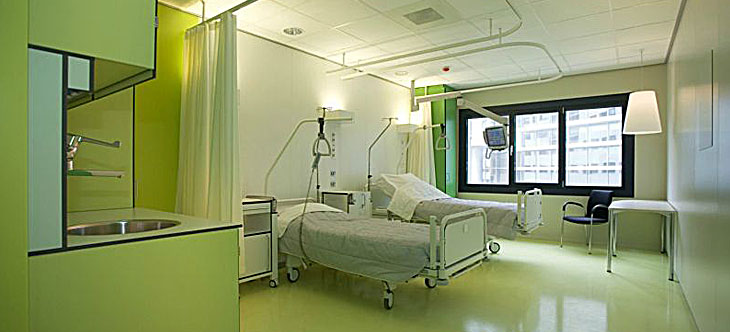

Packman’s Hospital Curtain Track meets the accepted standard for the overwhelming majority of healthcare facilities nationwide and is ideal for enclosing patient beds, shower areas, or at any place where personal privacy is required. Because most ceilings, both acoustical panel and drywall, are painted white, our hospital curtain track system is manufactured with a white baked enamel finish to blend with your facility's design. This white finish allows for a less institutional appearance, helping to create a healing environment.

G-RAIL 4100: SPECIFICATIONS
G-Rail 4100 is a strong, functional and fully reversible profile. Synthetic wall and ceiling fittings allow rail 4100 to comply with the European NEN-3134 standard for special care rooms requiring anti-static facility.

Standard Colours: White RAL 9010,Natural.

Material:
Aluminium 606035-T6-F22. (Higher specification than DIN 1725).
Shape and size tolerances are in accordance with DIN 17615.
Powder coat white RAL 9010 in accordance with the Qualicoat standard..
Profile weight: 394 g/m.
Runners/ rollers made of nylon 6/6 stainless steel 302 grade

Accessories:
Glider-hooks (rotating glider with SS hook) at 10 per metre, two end stops per length. Dust cover and connecting bridge to suit.

Installation:

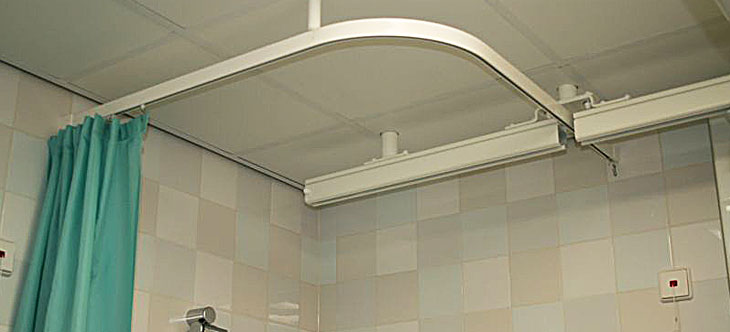

Ceiling fixing with ceiling fixing plate, mini suspension hanger, suspension hanger, or V hanger, strut hanger with plate.
